Seco

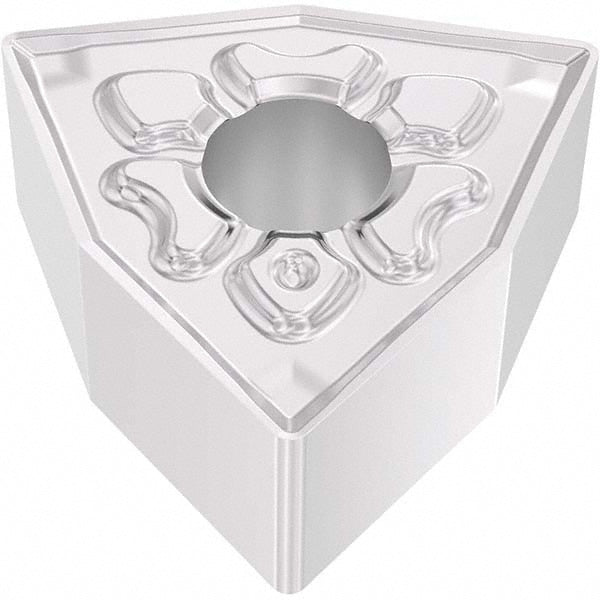

WNMG080412-MF4 Carbide Insert, Grade TM2501, TiCN - Seco 03273970
MFR# 03273970ISO/ANSI# WNMG433-MF4Series WNMG-MF4
$21.05List $27.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03273970 is a WNMG080412-MF4 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF4
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMG433-MF4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6842
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412-MF4
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number03273970
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.3248
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
