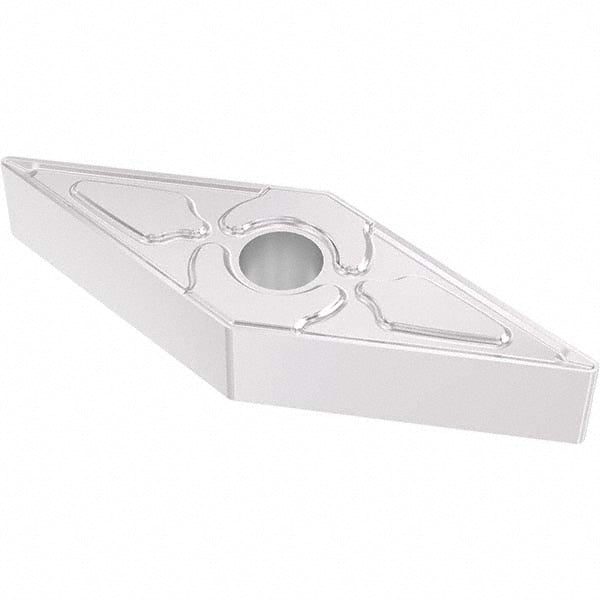

VNMG160404-MF4 Carbide Insert, Grade TM1501, TiCN - Seco 03273974

Seco

VNMG160404-MF4 Carbide Insert, Grade TM1501, TiCN - Seco 03273974

MFR# 03273974ISO/ANSI# VNMG160404Series VNMG-MF4

$34.95List $44.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeTM1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03273974 is a VNMG160404-MF4 carbide indexable insert, grade TM1501, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeVNMG331
Ansi size code331
Chip breakerMF4
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNMG331-MF4
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in39/64
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404-MF4
Iso insert codeVNMG160404
Iso size code160404
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number03273974
Manufacturer gradeTM1501
Material gradeM15; M20; M25
Maximum depth of cut0.6098
Maximum depth of cut frac in39/64
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
