Seco

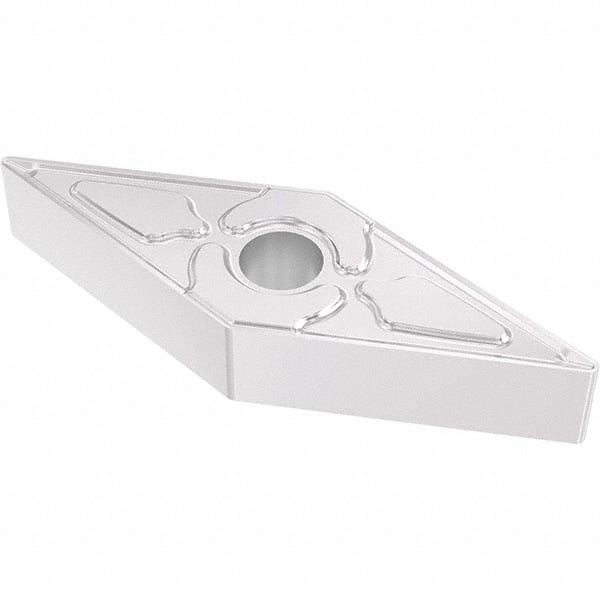

VNMG160404-MF4 Carbide Insert, Grade TM2501, TiCN - Seco 03273976
MFR# 03273976ISO/ANSI# VNMG331-MF4Series VNMG-MF4
$34.95List $44.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03273976 is a VNMG160404-MF4 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF4
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG331-MF4
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in39/64
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404-MF4
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number03273976
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.6098
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
