Seco

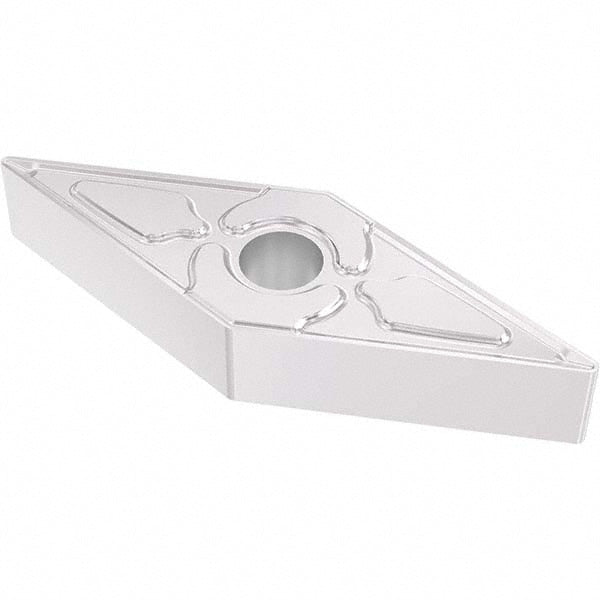

VNMG160408-MF4 Carbide Insert, Grade TM2501, TiCN - Seco 03273982
MFR# 03273982ISO/ANSI# VNMG332-MF4Series VNMG-MF4
$34.95List $44.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03273982 is a VNMG160408-MF4 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF4
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG332-MF4
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3078
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408-MF4
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number03273982
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.5760
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
