Seco

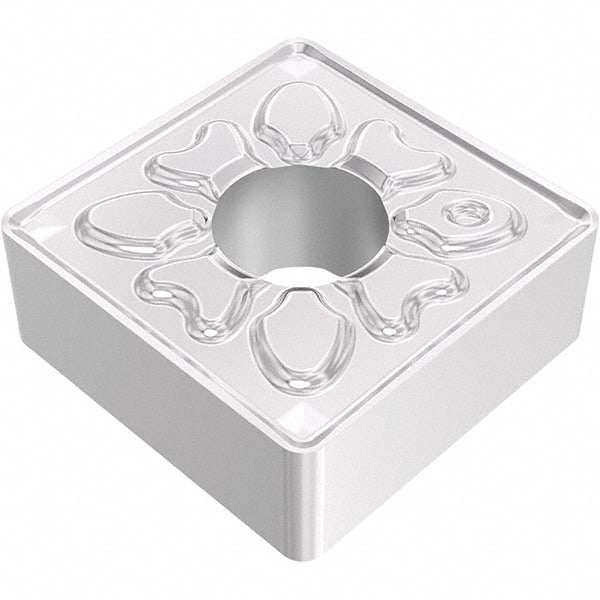

SNMG120408-MF4 Carbide Insert, Grade TM2501, TiCN - Seco 03274024
MFR# 03274024ISO/ANSI# SNMG432-MF4Series SNMG-MF4
$19.12List $24.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03274024 is a SNMG120408-MF4 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF4
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle90degree
Industry standard numberSNMG432-MF4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120408-MF4
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number03274024
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.4689
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
