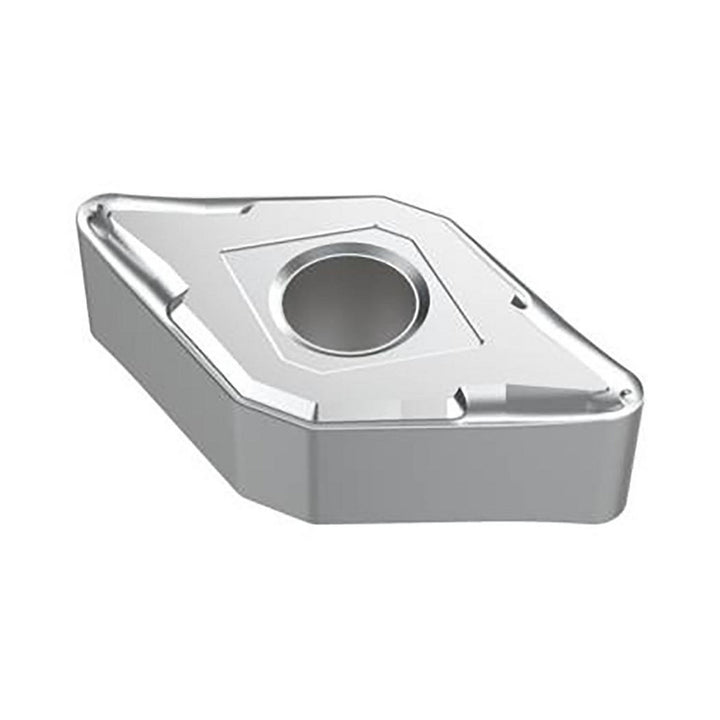

DNMG150608-MF2 Carbide Insert, Grade TP25, TiCN - Seco 03274164

Seco

DNMG150608-MF2 Carbide Insert, Grade TP25, TiCN - Seco 03274164

MFR# 03274164ISO/ANSI# DNMG150608Series DNMG-MF2

$24.92List $31.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeTP25
MaterialCarbide
CoatingTiCN

Description

The Seco 03274164 is a DNMG150608-MF2 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.

Specifications

Ansi insert codeDNMG442
Ansi size code442
Chip breakerMF2
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Toughness; Cast Iron (K) - High Toughness
Hole diameter0.2028
Included angle55
Industry standard numberDNMG442-MF2
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code442
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG150608-MF2
Iso insert codeDNMG150608
Iso size code150608
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number03274164
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.5012
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
