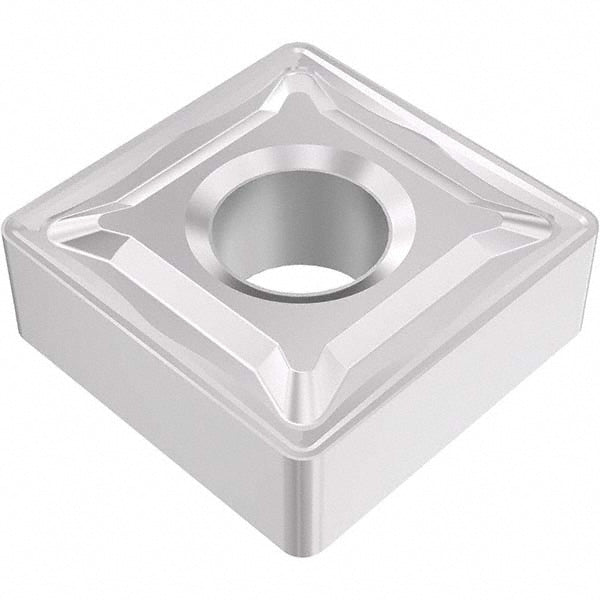

SNMG150612-M5 Carbide Insert, Grade TM2501, TiCN - Seco 03274169

Seco

SNMG150612-M5 Carbide Insert, Grade TM2501, TiCN - Seco 03274169

MFR# 03274169ISO/ANSI# SNMG150612Series SNMG-M5

$30.15List $38.66 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeS - Square
GradeTM2501
MaterialCarbide
CoatingTiCN

Description

The Seco 03274169 is a SNMG150612-M5 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeSNMG543
Ansi size code543
Chip breakerM5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Included angle90
Industry standard numberSNMG543-M5
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in5/8
Insert materialCarbide
Insert shapeS - Square
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG150612-M5
Iso insert codeSNMG150612
Iso size code150612
Lead angle90
Length range0.6000 - 0.6500
Manufacturers catalog number03274169
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.5780
Maximum depth of cut frac in37/64
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialStainless Steel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
