Seco

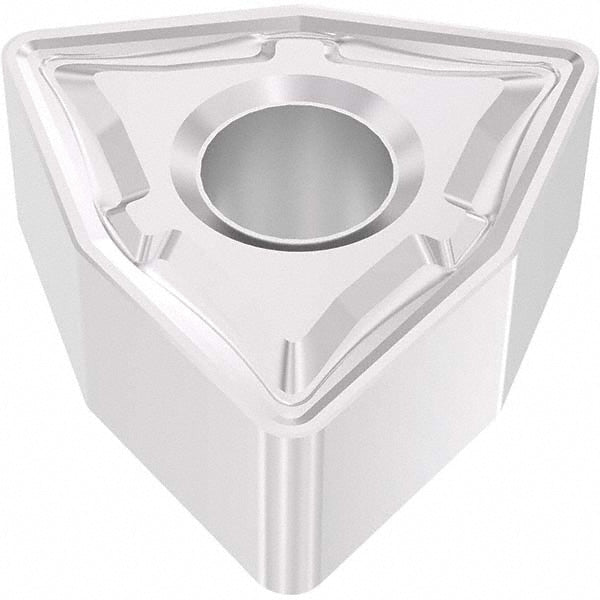

WNMG080408-M5 Carbide Insert, Grade TM2501, TiCN - Seco 03274180
MFR# 03274180ISO/ANSI# WNMG432-M5Series WNMG-M5
$21.05List $27.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03274180 is a WNMG080408-M5 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMG432-M5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-M5
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number03274180
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.3701
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
