Seco

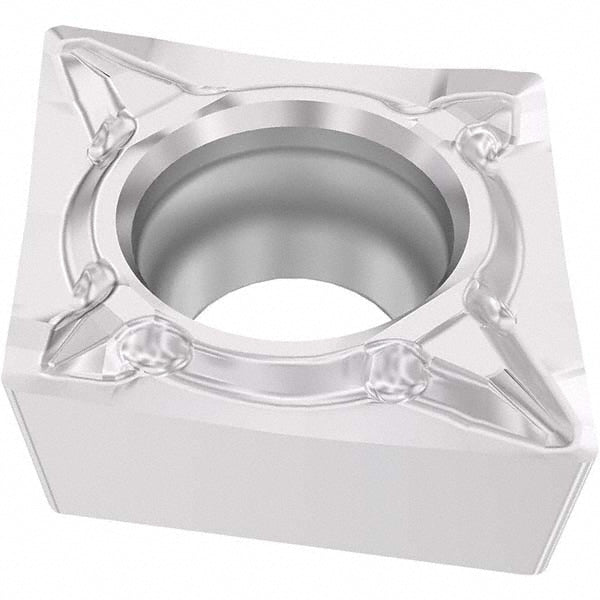

CCMT060202-F1 Carbide Insert, Grade TM2501, TiCN - Seco 03275902
MFR# 03275902ISO/ANSI# CCMT21.50.5-F1Series CCMT-F1
$14.90List $19.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03275902 is a CCMT060202-F1 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT21.50.5-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.50.5
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060202-F1
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number03275902
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.2457
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle17
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
