Seco

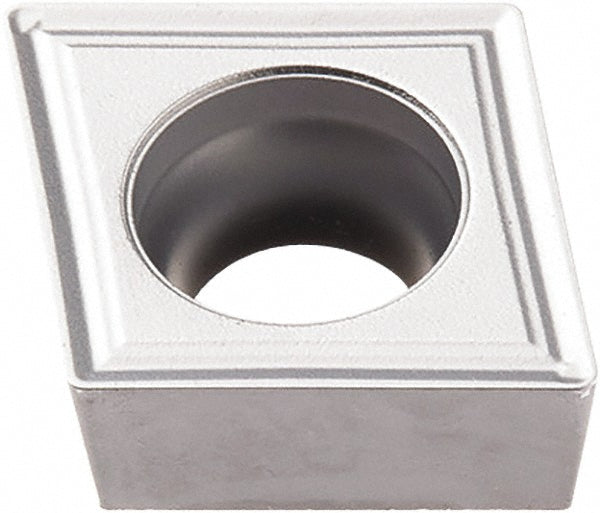

CCMT060208-M3 Carbide Insert, Grade TP25, TiCN - Seco 03275920
MFR# 03275920ISO/ANSI# CCMT060208Series CCMT-M3
$15.34List $19.34
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeTP25
MaterialCarbide
CoatingTiCN
Description
The Seco 03275920 is a CCMT060208-M3 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCCMT21.52
Ansi size code21.52
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Toughness; Cast Iron (K) - High Toughness
Hole diameter0.1142
Included angle80
Industry standard numberCCMT21.52-M3
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060208-M3
Iso insert codeCCMT060208
Iso size code060208
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number03275920
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.2197
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
