Seco

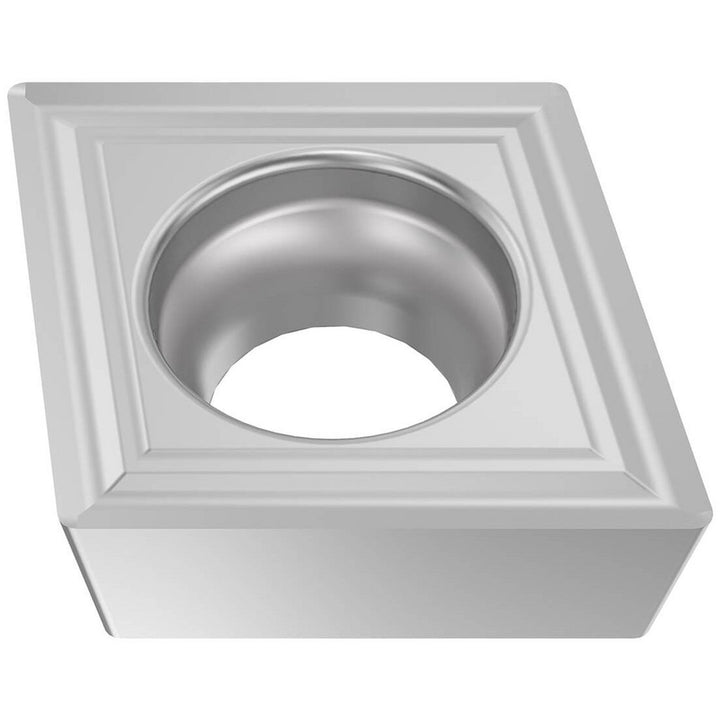

CCMT060208-M3 Carbide Insert, Grade TM3501, TiCN - Seco 03275922
MFR# 03275922ISO/ANSI# CCMT060208Series CCMT-M3
$11.88List $15.23
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeTM3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03275922 is a CCMT060208-M3 carbide indexable insert, grade TM3501, TiCN coated. Suited for stainless steel.
Specifications
Ansi insert codeCCMT21.52
Ansi size code21.52
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.1142
Included angle80
Industry standard numberCCMT21.52-M3
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length in7/32
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060208-M3
Iso insert codeCCMT060208
Iso size code060208
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number03275922
Manufacturer gradeTM3501
Material gradeM30; M40
Maximum depth of cut0.2197
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
