Seco

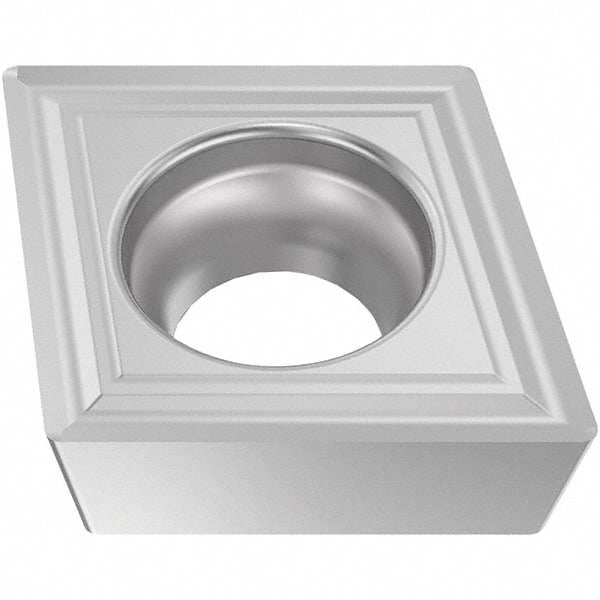

CCMT09T304-M3 Carbide Insert, Grade TM3501, TiCN - Seco 03275934
MFR# 03275934ISO/ANSI# CCMT32.51-M3Series CCMT-M3
$15.15List $19.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTM3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03275934 is a CCMT09T304-M3 carbide indexable insert, grade TM3501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCMT32.51-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304-M3
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number03275934
Manufacturer gradeTM3501
Material gradeM30; M40
Maximum depth of cut0.3646
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
