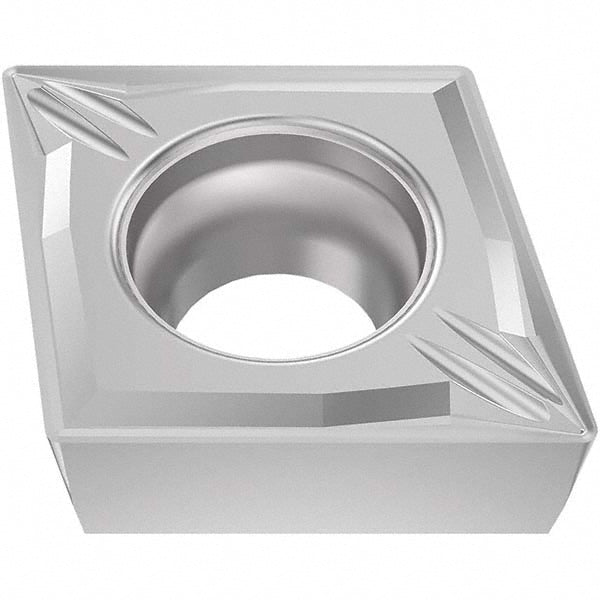

CCMT09T308-MF2 Carbide Insert, Grade TM1501, TiCN - Seco 03275964

Seco

CCMT09T308-MF2 Carbide Insert, Grade TM1501, TiCN - Seco 03275964

MFR# 03275964ISO/ANSI# CCMT09T308Series CCMT-MF2

$15.15List $19.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTM1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03275964 is a CCMT09T308-MF2 carbide indexable insert, grade TM1501, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeCCMT32.52
Ansi size code32.52
Chip breakerMF2
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Toughness
Hole diameter0.1772
Included angle80
Industry standard numberCCMT32.52-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308-MF2
Iso insert codeCCMT09T308
Iso size code09T308
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number03275964
Manufacturer gradeTM1501
Material gradeM15; M20; M25
Maximum depth of cut0.3484
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
