Seco

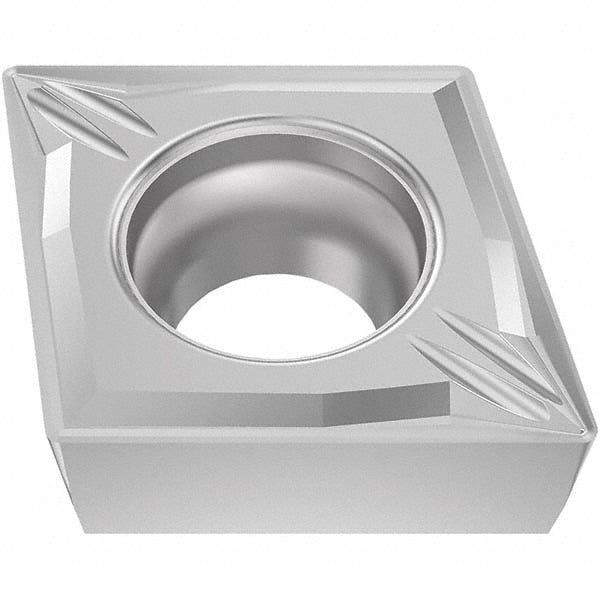

CCMT09T308-MF2 Carbide Insert, Grade TM2501, TiCN - Seco 03275965
MFR# 03275965ISO/ANSI# CCMT32.52-MF2Series CCMT-MF2
$15.15List $19.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03275965 is a CCMT09T308-MF2 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF2
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCMT32.52-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308-MF2
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number03275965
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.3484
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
