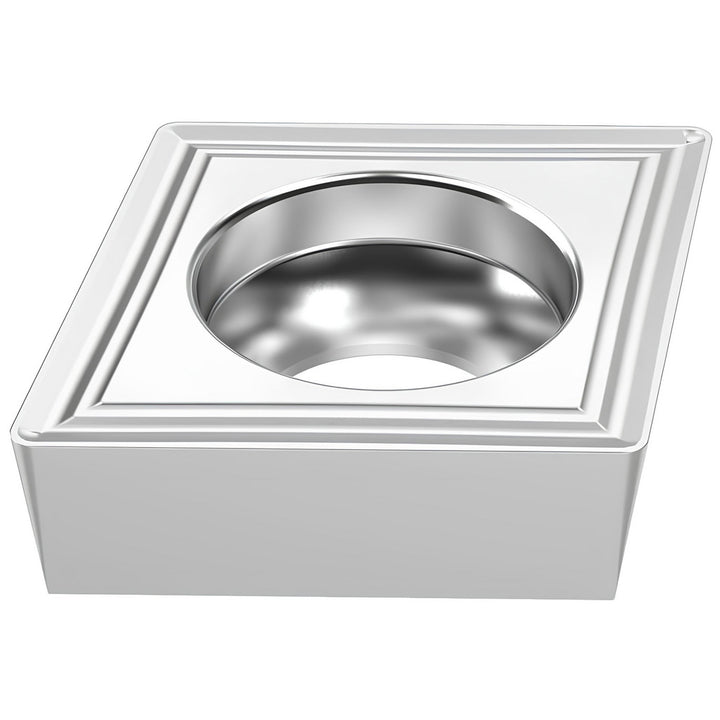

CCMT160508-M3 Carbide Insert, Grade TP25, TiCN - Seco 03275974

Seco

CCMT160508-M3 Carbide Insert, Grade TP25, TiCN - Seco 03275974

MFR# 03275974ISO/ANSI# CCMT53.52-M3Series CCMT-M3

$32.43List $41.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeDiamond
GradeTP25
MaterialCarbide
CoatingTiCN

Description

The Seco 03275974 is a CCMT160508-M3 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.

Specifications

Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2205
Included angle80
Industry standard numberCCMT53.52-M3
Inscribed circle in5/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond
Insert size code53.52
Insert styleCCMT
Insert thickness in7/32
Iso codeCCMT160508-M3
Lead angle80
Length range0.6000 - 0.6500
Manufacturers catalog number03275974
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.6024
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
