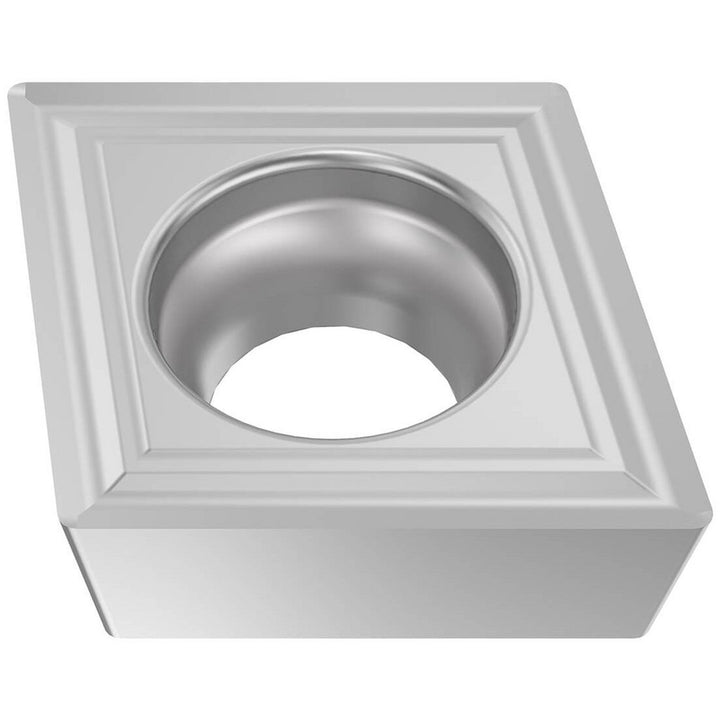

CCMT160508-M3 Carbide Insert, Grade TM2501, TiCN - Seco 03275975

Seco

CCMT160508-M3 Carbide Insert, Grade TM2501, TiCN - Seco 03275975

MFR# 03275975ISO/ANSI# CCMT160508Series CCMT-M3

$30.57List $39.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTM2501
MaterialCarbide
CoatingTiCN

Description

The Seco 03275975 is a CCMT160508-M3 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeCCMT53.52
Ansi size code53.52
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2205
Included angle80
Industry standard numberCCMT53.52-M3
Inscribed circle in5/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6346
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code53.52
Insert styleCCMT
Insert thickness in7/32
Iso codeCCMT160508-M3
Iso insert codeCCMT160508
Iso size code160508
Lead angle80
Length range0.6000 - 0.6500
Manufacturers catalog number03275975
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.6024
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
