Seco

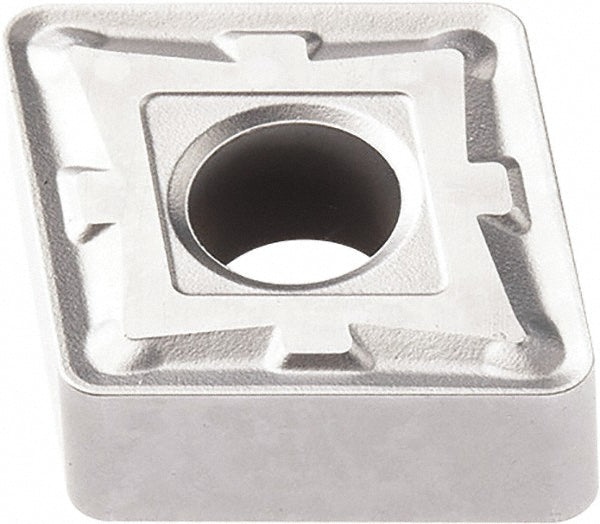

CNMG120408-M3 Carbide Insert, Grade TP25, TiCN - Seco 03275989
MFR# 03275989ISO/ANSI# CNMG432-M3Series CNMG-M3
$18.27List $23.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTP25
MaterialCarbide
CoatingTiCN
Description
The Seco 03275989 is a CNMG120408-M3 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMG432-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-M3
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number03275989
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.4756
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
