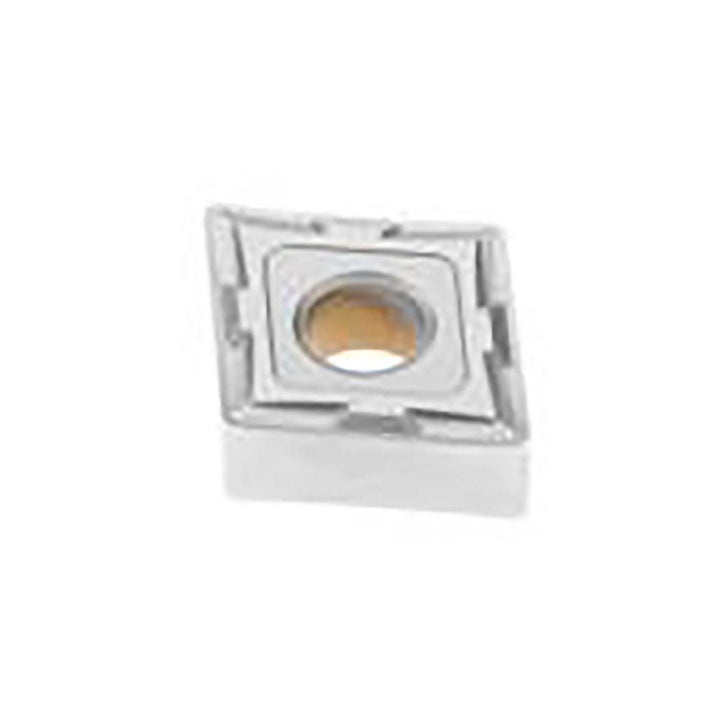

CNMG120408-MF2 Carbide Insert, Grade TP25, TiCN - Seco 03275997

Seco

CNMG120408-MF2 Carbide Insert, Grade TP25, TiCN - Seco 03275997

MFR# 03275997ISO/ANSI# CNMG432-MF2Series CNMG-MF2

$18.27List $23.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTP25
MaterialCarbide
CoatingTiCN

Description

The Seco 03275997 is a CNMG120408-MF2 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.

Specifications

Chip breakerMF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80
Industry standard numberCNMG432-MF2
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-MF2
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number03275997
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.4756
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
