Seco

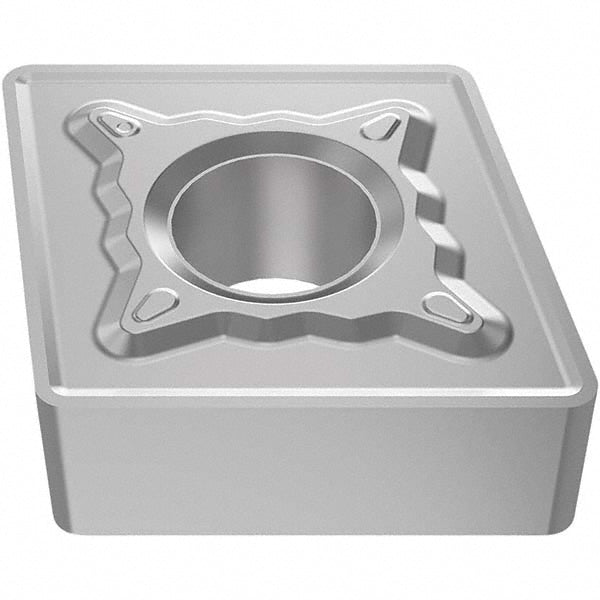

CNMG120408-MR7 Carbide Insert, Grade TM2501, TiCN - Seco 03276001
MFR# 03276001ISO/ANSI# CNMG432-MR7Series CNMG-MR7
$19.12List $24.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276001 is a CNMG120408-MR7 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMR7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMG432-MR7
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-MR7
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number03276001
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.4756
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle17.5
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
