Seco

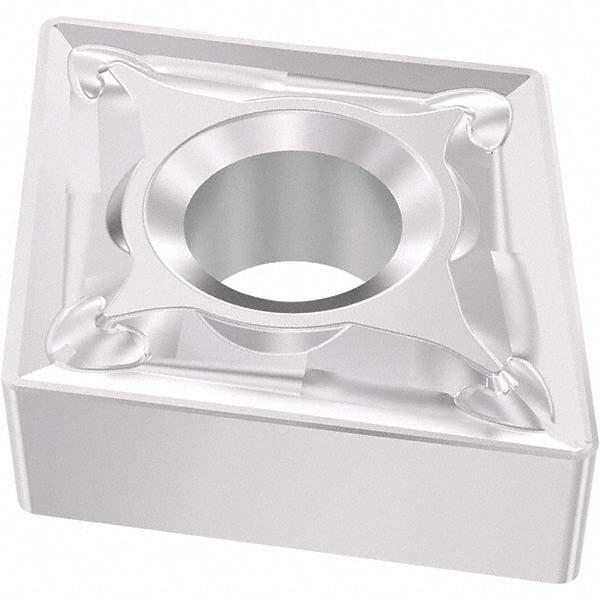

CNMG160612-M3 Carbide Insert, Grade TM2501, TiCN - Seco 03276039
MFR# 03276039ISO/ANSI# CNMG543-M3Series CNMG-M3
$30.15List $38.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276039 is a CNMG160612-M3 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80
Industry standard numberCNMG543-M3
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612-M3
Lead angle80
Length range0.6000 - 0.6500
Manufacturers catalog number03276039
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.5862
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
