Seco

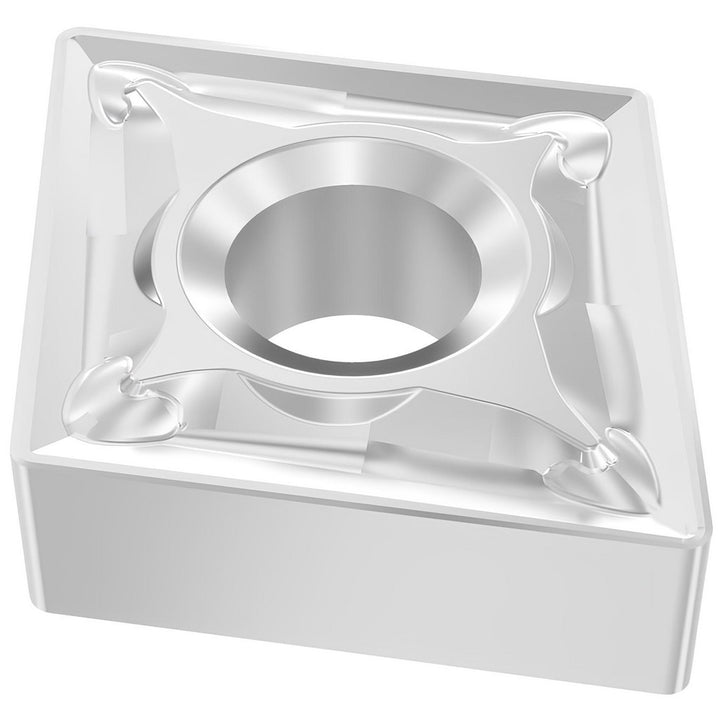

CNMG190608-M3 Carbide Insert, Grade TM3501, TiCN - Seco 03276043
MFR# 03276043ISO/ANSI# CNMG642-M3Series CNMG-M3
$38.23List $49.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeTM3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276043 is a CNMG190608-M3 carbide indexable insert, grade TM3501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3118
Included angle80
Industry standard numberCNMG642-M3
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.7614
Insert materialCarbide
Insert shapeDiamond
Insert size code642
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190608-M3
Lead angle80
Length range0.7000 - 10.0000
Manufacturers catalog number03276043
Manufacturer gradeTM3501
Material gradeM30; M40
Maximum depth of cut0.7295
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
