Seco

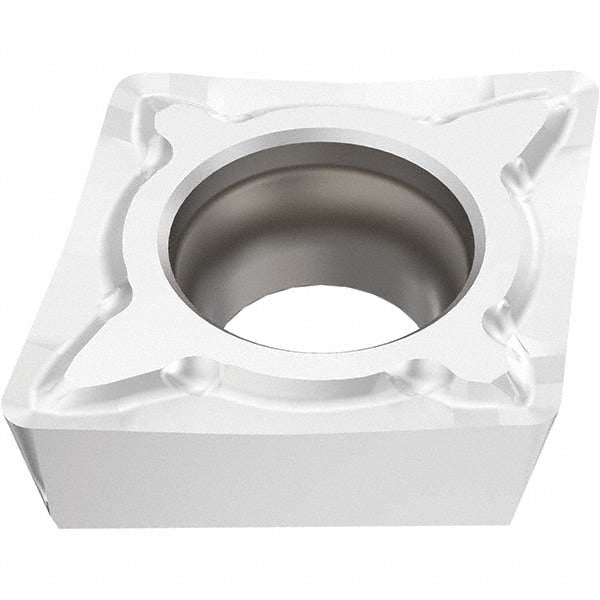

CPMT060204-F1 Carbide Insert, Grade TP25, TiCN - Seco 03276191
MFR# 03276191ISO/ANSI# CPMT21.51-F1Series CPMT-F1
$12.81List $16.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeTP25
MaterialCarbide
CoatingTiCN
Description
The Seco 03276191 is a CPMT060204-F1 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCPMT21.51-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.51
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT060204-F1
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number03276191
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.2378
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle17
Relief angle11
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
