Seco

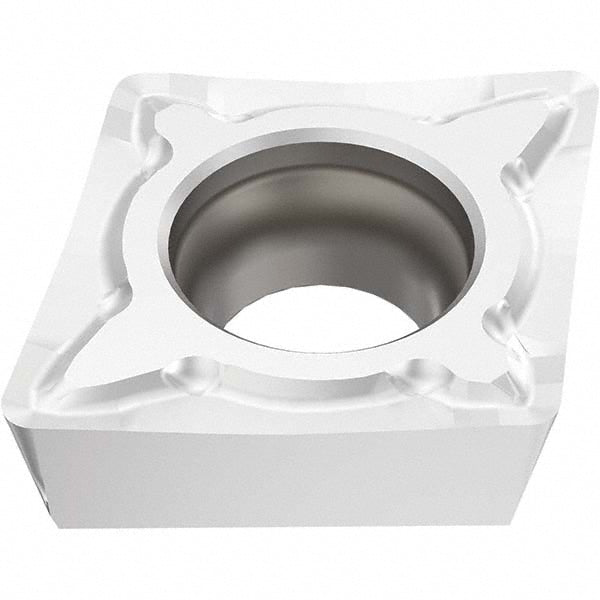

CPMT09T308-F1 Carbide Insert, Grade TP25, TiCN - Seco 03276194
MFR# 03276194ISO/ANSI# CPMT32.52-F1Series CPMT-F1
$17.49List $22.05
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTP25
MaterialCarbide
CoatingTiCN
Description
The Seco 03276194 is a CPMT09T308-F1 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCPMT32.52-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.52
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT09T308-F1
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number03276194
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.3484
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle17
Relief angle11
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
