Seco

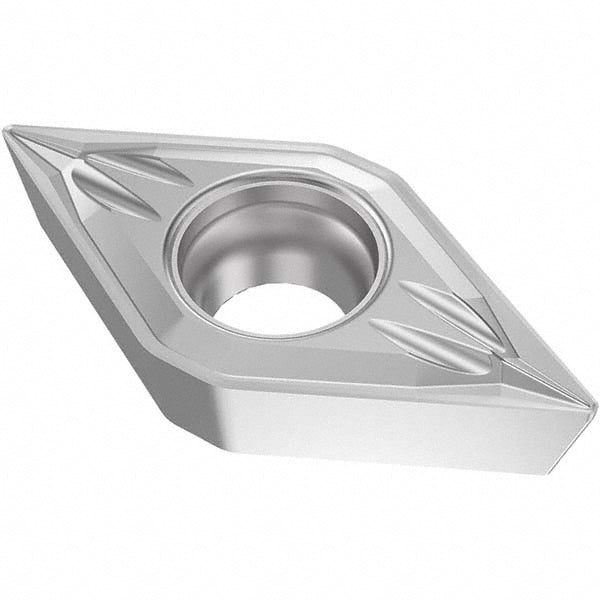

DCMT070204-MF2 Carbide Insert, Grade TM3501, TiCN - Seco 03276201
MFR# 03276201ISO/ANSI# DCMT21.51-MF2Series DCMT-MF2
$13.06List $16.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradeTM3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276201 is a DCMT070204-MF2 carbide indexable insert, grade TM3501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF2
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1142
Included angle55degree
Industry standard numberDCMT21.51-MF2
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6102
Insert materialCarbide
Insert shapeDiamond 55
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070204-MF2
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number03276201
Manufacturer gradeTM3501
Material gradeM30; M40
Maximum depth of cut0.2449
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
