Seco

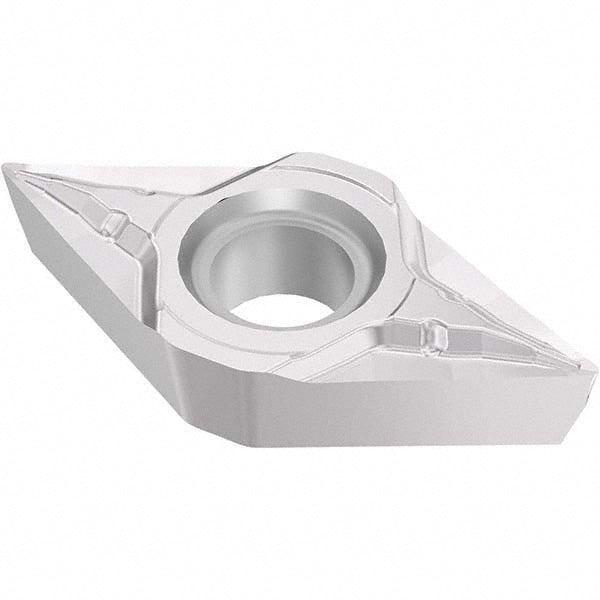

DCMT11T304-F1 Carbide Insert, Grade TM2501, TiCN - Seco 03276210
MFR# 03276210ISO/ANSI# DCMT32.51-F1Series DCMT-F1
$17.50List $22.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276210 is a DCMT11T304-F1 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle55degree
Industry standard numberDCMT32.51-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9158
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304-F1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number03276210
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.3795
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle17
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
