Seco

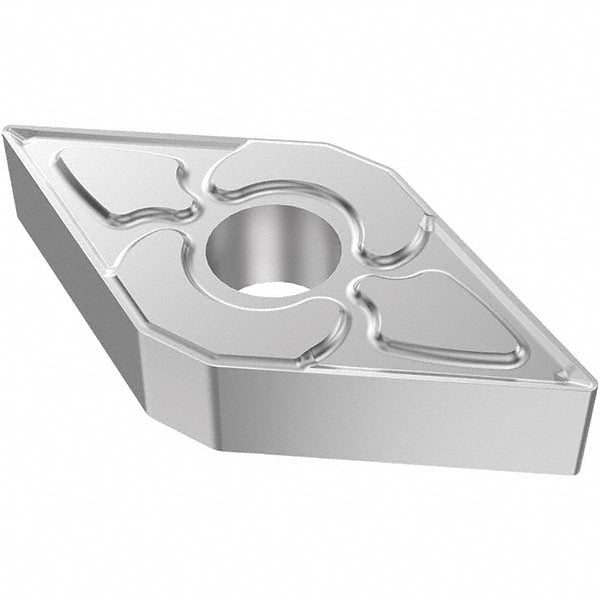

DNMG150404-MF4 Carbide Insert, Grade TM3501, TiCN - Seco 03276271
MFR# 03276271ISO/ANSI# DNMG431-MF4Series DNMG-MF4
$21.98List $28.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTM3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276271 is a DNMG150404-MF4 carbide indexable insert, grade TM3501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF4
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle55
Industry standard numberDNMG431-MF4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in33/64
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404-MF4
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number03276271
Manufacturer gradeTM3501
Material gradeM30; M40
Maximum depth of cut0.5154
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
