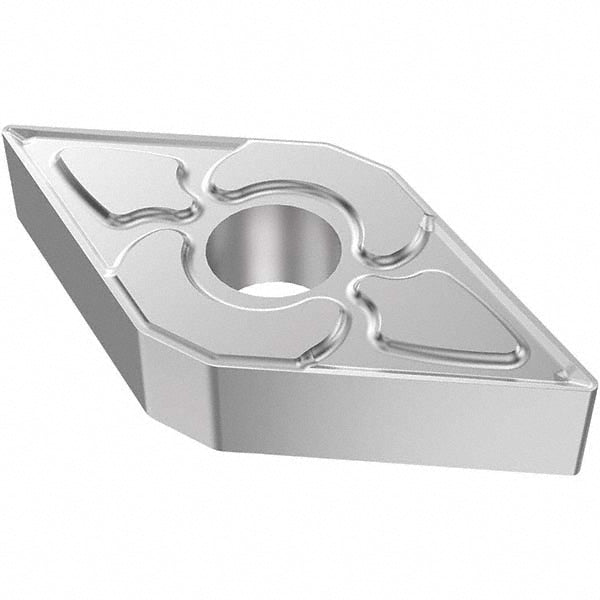

DNMG150408-MF4 Carbide Insert, Grade TM1501, TiCN - Seco 03276275

Seco

DNMG150408-MF4 Carbide Insert, Grade TM1501, TiCN - Seco 03276275

MFR# 03276275ISO/ANSI# DNMG432-MF4Series DNMG-MF4

$24.08List $30.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTM1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03276275 is a DNMG150408-MF4 carbide indexable insert, grade TM1501, TiCN coated. Suited for stainless steel.

Specifications

Chip breakerMF4
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMG432-MF4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-MF4
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number03276275
Manufacturer gradeTM1501
Material gradeM15; M20; M25
Maximum depth of cut0.5012
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
