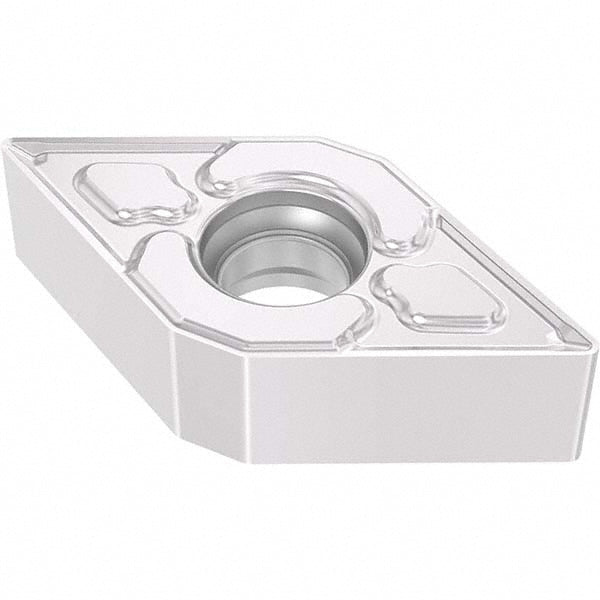

DNMU110404-MF4 Carbide Insert, Grade TM1501, TiCN - Seco 03276320

Seco

DNMU110404-MF4 Carbide Insert, Grade TM1501, TiCN - Seco 03276320

MFR# 03276320ISO/ANSI# DNMU110404Series DNMU-MF4

$18.19List $23.33 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeTM1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03276320 is a DNMU110404-MF4 carbide indexable insert, grade TM1501, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeDNMU331
Ansi size code331
Chip breakerMF4
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Toughness
Hole diameter0.1500
Included angle55
Industry standard numberDNMU331-MF4
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.9158
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code331
Insert styleDNMU
Insert thickness in3/16
Iso codeDNMU110404-MF4
Iso insert codeDNMU110404
Iso size code110404
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number03276320
Manufacturer gradeTM1501
Material gradeM15; M20; M25
Maximum depth of cut0.3799
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
