Seco

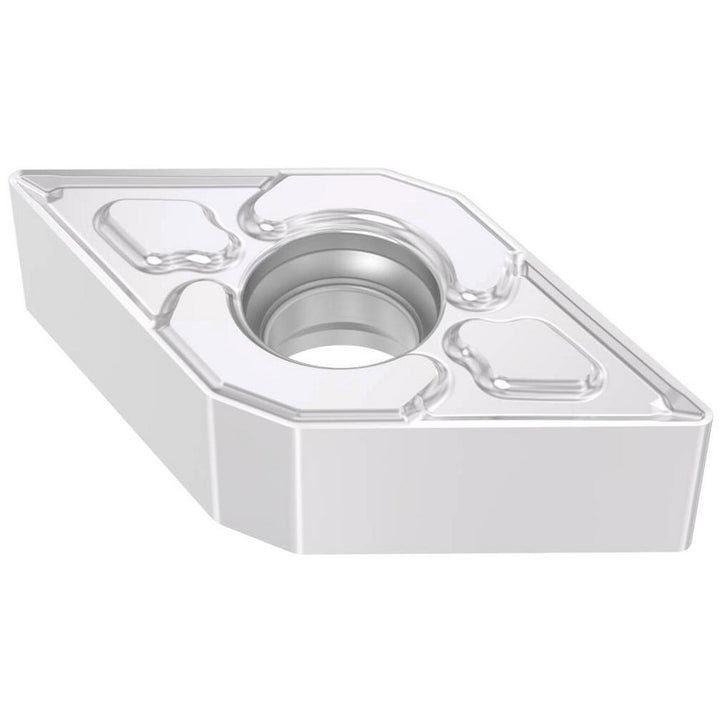

DNMU110408-MF4 Carbide Insert, Grade TM1501, TiCN - Seco 03276327
MFR# 03276327ISO/ANSI# DNMU332-MF4Series DNMU-MF4
$19.96List $25.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTM1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276327 is a DNMU110408-MF4 carbide indexable insert, grade TM1501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF4
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle55degree
Industry standard numberDNMU332-MF4
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.9158
Insert materialCarbide
Insert shapeDiamond 55
Insert size code332
Insert styleDNMU
Insert thickness in3/16
Iso codeDNMU110408-MF4
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number03276327
Manufacturer gradeTM1501
Material gradeM15; M20; M25
Maximum depth of cut0.3697
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
