Seco

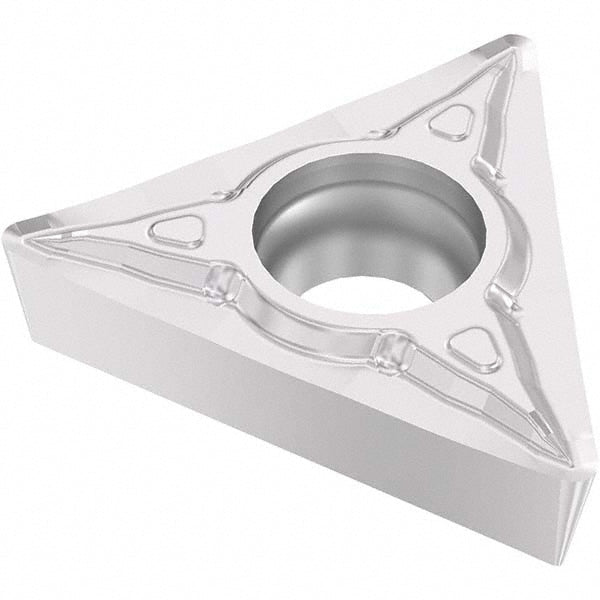

TCMT110204-F1 Carbide Insert, Grade TM2501, TiCN - Seco 03276589
MFR# 03276589ISO/ANSI# TCMT110204Series TCMT-F1
$14.57List $18.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276589 is a TCMT110204-F1 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Ansi insert codeTCMT21.51
Ansi size code21.51
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1142
Included angle60
Industry standard numberTCMT21.51-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110204-F1
Iso insert codeTCMT110204
Iso size code110204
Lead angle60
Length range0.4000 - 0.5000
Manufacturers catalog number03276589
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.3945
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel
RakePositive
Rake angle17
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.4331
Wiper edgeNo
