Seco

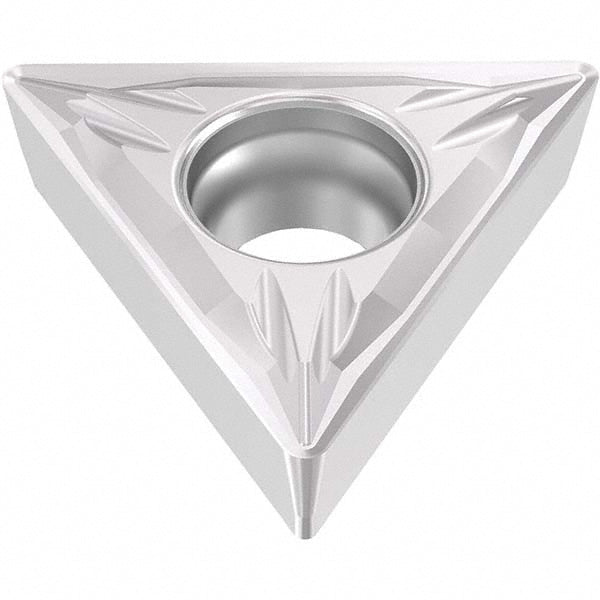

TCMT110204-MF2 Carbide Insert, Grade TM3501, TiCN - Seco 03276591
MFR# 03276591ISO/ANSI# TCMT21.51-MF2Series TCMT-MF2
$17.93List $18.68
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeTM3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276591 is a TCMT110204-MF2 carbide indexable insert, grade TM3501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF2
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1142
Included angle60degree
Industry standard numberTCMT21.51-MF2
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110204-MF2
Lead angle60degree
Length range0.4000 - 0.5000
Manufacturers catalog number03276591
Manufacturer gradeTM3501
Material gradeM30; M40
Maximum depth of cut0.3945
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.4331in
Wiper edgeNo
