Seco

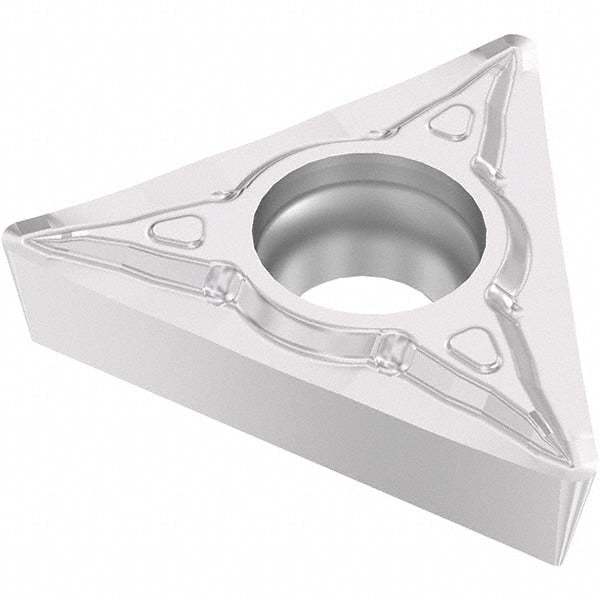

TCMT16T302-F1 Carbide Insert, Grade TM2501, TiCN - Seco 03276593
MFR# 03276593ISO/ANSI# TCMT32.50.5-F1Series TCMT-F1
$20.28List $26.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276593 is a TCMT16T302-F1 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle60degree
Industry standard numberTCMT32.50.5-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code32.50.5
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T302-F1
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number03276593
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.6303
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel
RakePositive
Rake angle17
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
