Seco

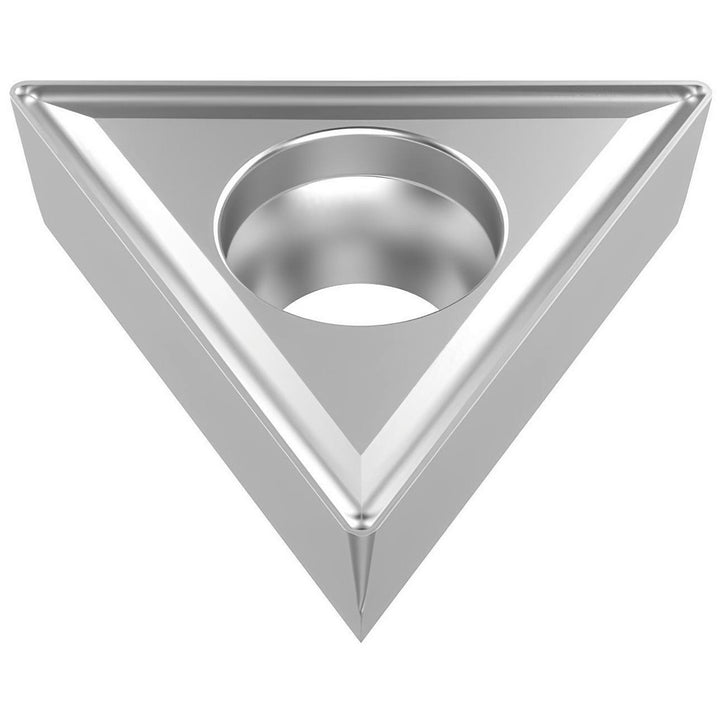

TCMT220408-M3 Carbide Insert, Grade TP25, TiCN - Seco 03276604
MFR# 03276604ISO/ANSI# TCMT432-M3Series TCMT-M3
$21.30List $27.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeTP25
MaterialCarbide
CoatingTiCN
Description
The Seco 03276604 is a TCMT220408-M3 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2205
Included angle60degree
Industry standard numberTCMT432-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTCMT
Insert thickness in3/16
Iso codeTCMT220408-M3
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number03276604
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.7890
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Rake angle17
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
