Seco

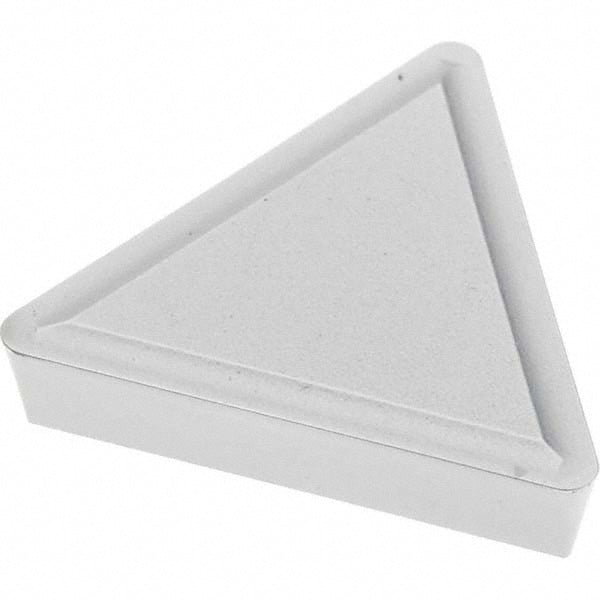

TPMR160304-F1 Carbide Insert, Grade TP25, TiCN - Seco 03276605
MFR# 03276605ISO/ANSI# TPMR160304Series TPMR-F1
$15.75List $20.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeTP25
MaterialCarbide
CoatingTiCN
Description
The Seco 03276605 is a TPMR160304-F1 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.
Specifications
Ansi insert codeTPMR321
Ansi size code321
Chip breakerF1
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Toughness; Cast Iron (K) - High Toughness
Included angle60
Industry standard numberTPMR321-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code321
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR160304-F1
Iso insert codeTPMR160304
Iso size code160304
Lead angle60
Length range0.6000 - 0.6500
Manufacturers catalog number03276605
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.6110
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Rake angle17
Relief angle11
Secondary workpiece materialStainless Steel; Cast Iron
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
