Seco

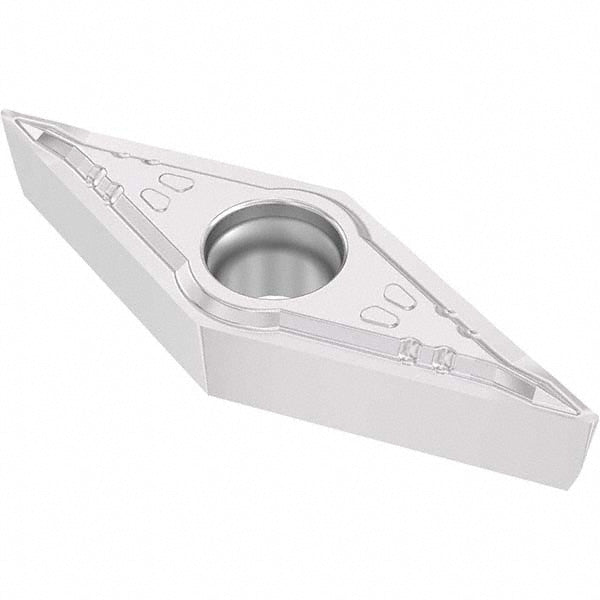

VBMT110304-F1 Carbide Insert, Grade TM3501, TiCN - Seco 03276614
MFR# 03276614ISO/ANSI# VBMT221-F1Series VBMT-F1
$23.40List $30.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeTM3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276614 is a VBMT110304-F1 carbide indexable insert, grade TM3501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle35
Industry standard numberVBMT221-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8716
Insert materialCarbide
Insert shapeDiamond
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT110304-F1
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number03276614
Manufacturer gradeTM3501
Material gradeM30; M40
Maximum depth of cut0.3969
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle17
Relief angle5
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
