Seco

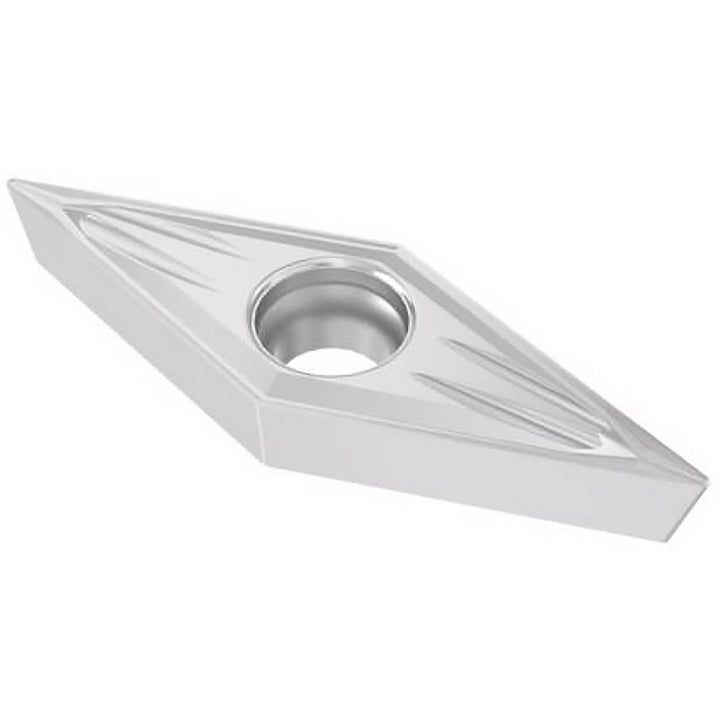

VBMT160404-MF2 Carbide Insert, Grade TM2501, TiCN - Seco 03276622
MFR# 03276622ISO/ANSI# VBMT331-MF2Series VBMT-MF2
$24.60List $31.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276622 is a VBMT160404-MF2 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF2
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle35degree
Industry standard numberVBMT331-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3078
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404-MF2
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number03276622
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.6150
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle18
Relief angle5
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
