Seco

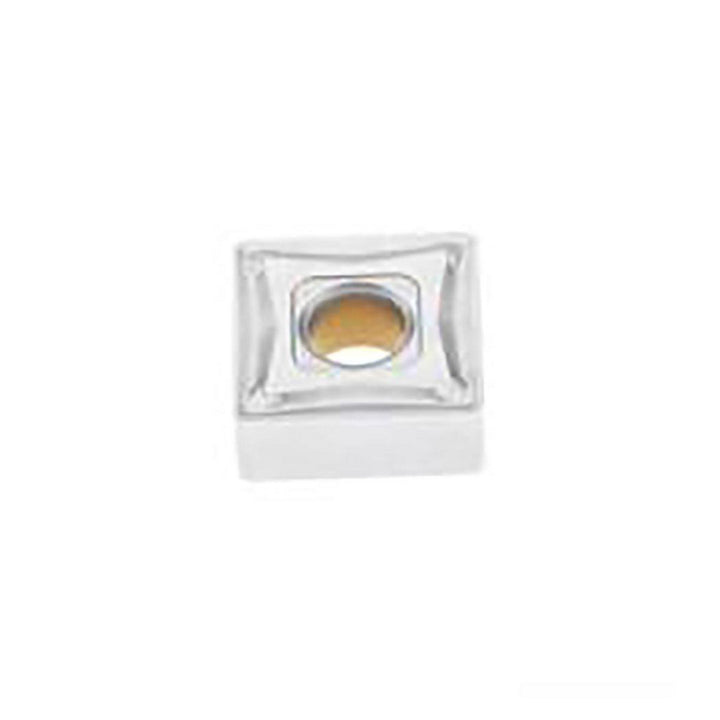

SNMG120408-M3 Carbide Insert, Grade TP25, TiCN - Seco 03276644
MFR# 03276644ISO/ANSI# SNMG120408Series SNMG-M3
$22.29
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeTP25
MaterialCarbide
CoatingTiCN
Description
The Seco 03276644 is a SNMG120408-M3 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.
Specifications
Ansi insert codeSNMG432
Ansi size code432
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Toughness; Cast Iron (K) - High Toughness
Hole diameter0.2028
Included angle90
Industry standard numberSNMG432-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120408-M3
Iso insert codeSNMG120408
Iso size code120408
Lead angle90
Length range0.5000 - 0.6000
Manufacturers catalog number03276644
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.4685
Maximum depth of cut frac in15/32
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
