Seco

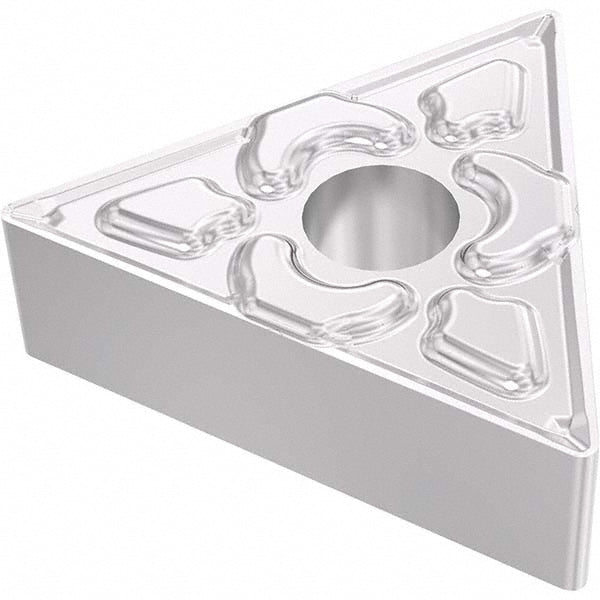

TNMG220408-MF4 Carbide Insert, Grade TM3501, TiCN - Seco 03276686
MFR# 03276686ISO/ANSI# TNMG432-MF4Series TNMG-MF4
$23.23List $29.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeTM3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276686 is a TNMG220408-MF4 carbide indexable insert, grade TM3501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF4
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle60degree
Industry standard numberTNMG432-MF4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408-MF4
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number03276686
Manufacturer gradeTM3501
Material gradeM30; M40
Maximum depth of cut0.7890
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
