Seco

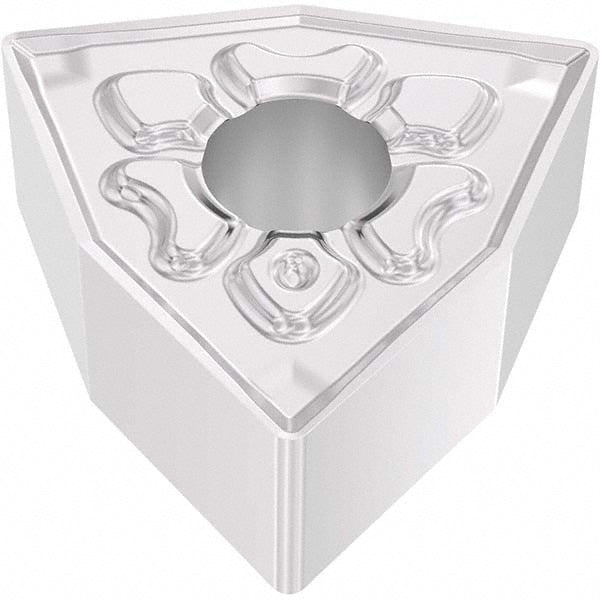

WNMG060408-MF4 Carbide Insert, Grade TM2501, TiCN - Seco 03276707
MFR# 03276707ISO/ANSI# WNMG332-MF4Series WNMG-MF4
$17.27List $22.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276707 is a WNMG060408-MF4 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF4
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMG332-MF4
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5134
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060408-MF4
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number03276707
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.2449
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
