Seco

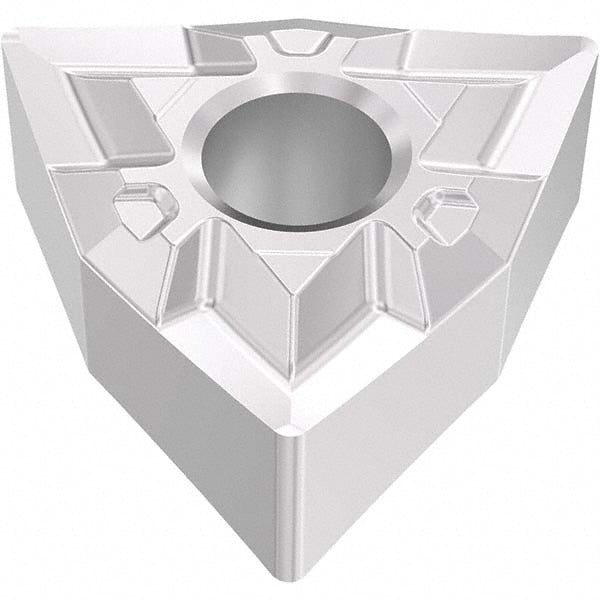

WNMG080404-MF1 Carbide Insert, Grade TM2501, TiCN - Seco 03276715
MFR# 03276715ISO/ANSI# WNMP431-MF1Series WNMP-MF1
$25.63List $32.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03276715 is a WNMG080404-MF1 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF1
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMP431-MF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6842
Insert materialCarbide
Insert shapeTrigon
Insert size code431
Insert styleWNMP
Insert thickness in3/16
Iso codeWNMG080404-MF1
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number03276715
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.3362
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
