Seco

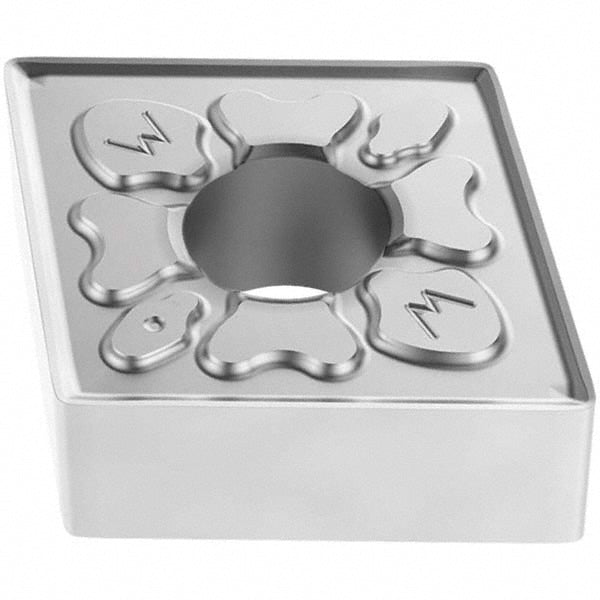

CNMG120408W-MF4 Carbide Insert, Grade TM2501, TiCN - Seco 03277077
MFR# 03277077ISO/ANSI# CNMG432W-MF4Series CNMG-MF4
$21.90List $28.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03277077 is a CNMG120408W-MF4 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF4
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80
Industry standard numberCNMG432W-MF4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408W-MF4
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number03277077
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.4752
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeYes
