Seco
Indexable Milling Cutters - Seco 03277879
MFR# 03277879Cat# R335.19-02.00-RE-0.25-2NASeries R335.19
$985.07List $1,046.51
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.2
Description

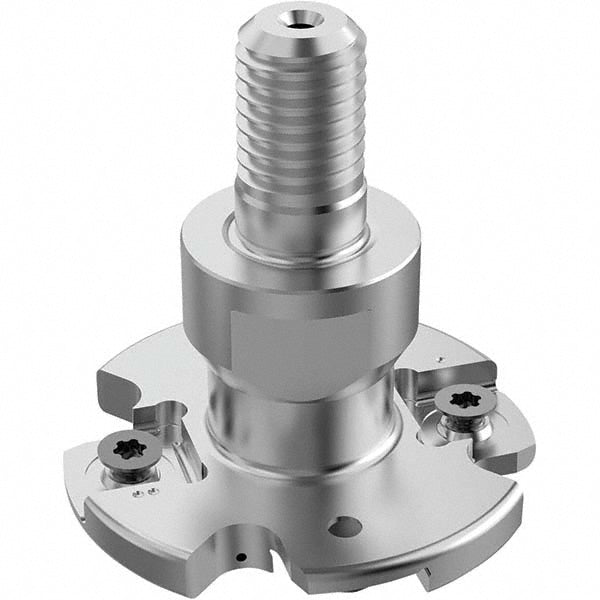

The Seco 03277879 indexable milling cutters. Series R335.19.
Specifications
Compatible insert size code1204..
Compatible insert styleSNHQ
Complete insert compatibilitySNHQ1204..L+R; 335.19-1204
Connection typeCombimaster
Coolant throughYes
Cutter body width0.2500
Cutter diameter in2
Cutting directionRight Hand
Cutting width in1/4
Hub diameter in29/32
Insert holding methodScrew
Lead angle90
Manufacturers catalog numberR335.19-02.00-RE-0.25-2NA
Maximum body diameter0.7280
Maximum cutting width0.2500
Maximum depth of cut0.6020
Maximum rpm12300
Modular connection sizeM12
Number of cutter inserts2
Number of teeth4
RakeNegative (Axial); Negative (Radial)
Toolholder styleR335.19
Tool applicationSlotting; Side Milling; Disc Milling
Tool performanceGeneral Purpose
Tooth typeStaggered
