Seco

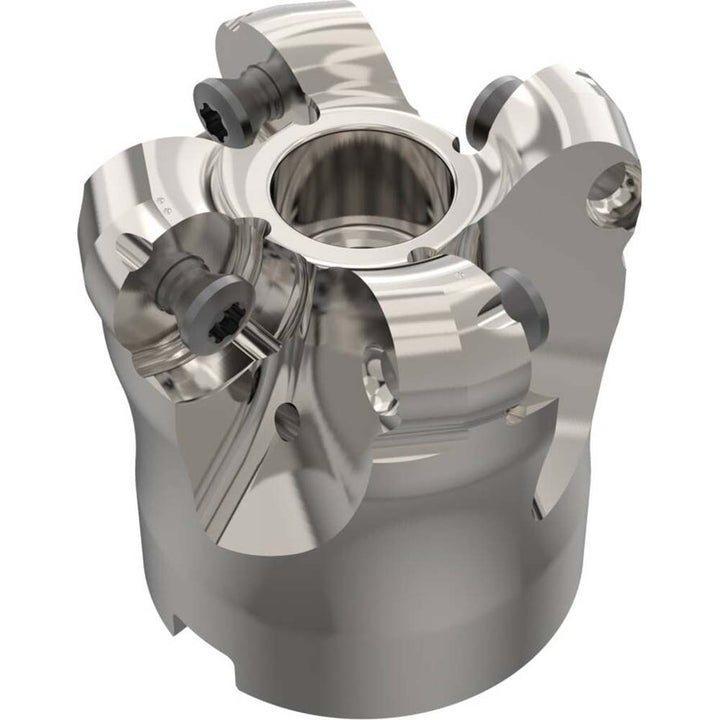

Indexable Milling Cutters - Seco 03278994
MFR# 03278994Series R220.29
$753.30List $800.29
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03278994 indexable milling cutters. Series R220.29.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeRP 1204
Coolant throughYes
Counterbore diameter (mm)19.05
Cutter styleR220.29
Cutting diameter1.3791
Cutting directionRight Hand
Hub diameter (mm)41.00
Insert holding methodScrew
Keyway width8.1500
Maximum cutting diameter (mm)50.80
Maximum depth of cut (mm)8.00
Maximum ramping angle2.70
Maximum rpm9600
Minimum cutting diameter (mm)35.03
Number of cutter inserts4
Overall diameter2.0000
Overall height in2
Tool applicationHelical Interpolation; Ramping
