Seco

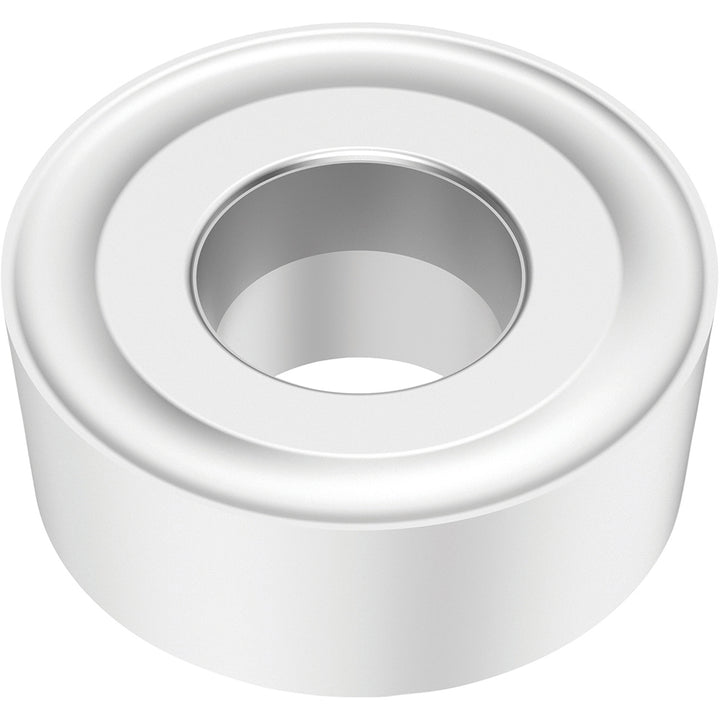

RCMM120400-46 Carbide Insert, Grade TP25, TiCN - Seco 03279993
MFR# 03279993ISO/ANSI# RCMM43-46Series RCMM-46
$16.25List $20.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
GradeTP25
MaterialCarbide
CoatingTiCN
Description
The Seco 03279993 is a RCMM120400-46 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.
Specifications
Chip breaker46
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/4
Cutting edge styleHoned
Full radiusYes
Hole diameter0.2031
Included angle360degree
Industry standard numberRCMM43-46
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeRound
Insert size code43
Insert styleRCMM
Insert thickness0.1925
Iso codeRCMM120400-46
Lead angle360degree
Length range0.5000 - 0.6000
Manufacturers catalog number03279993
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.2500
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Rake angle14
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
