Seco

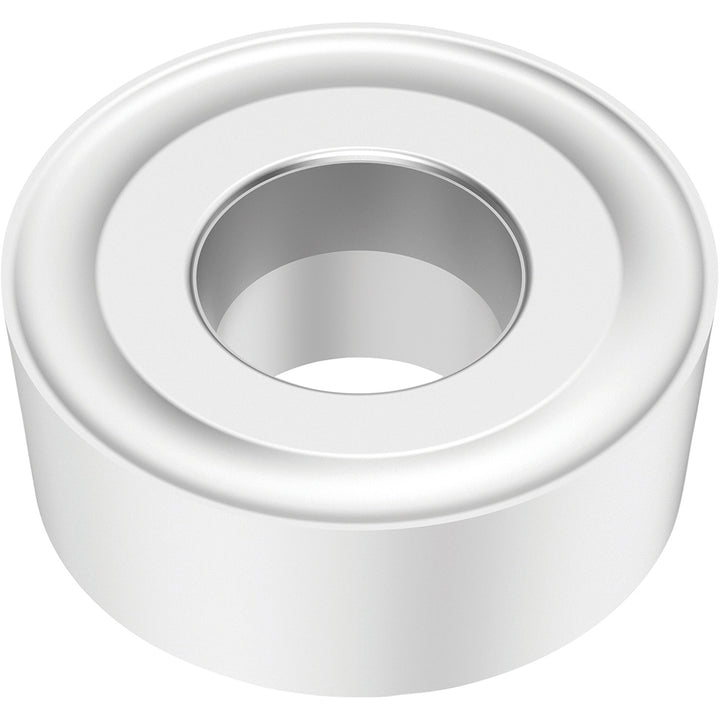

RCMM190600-46 Carbide Insert, Grade TP25, TiCN - Seco 03279994
MFR# 03279994ISO/ANSI# RCMM64-46Series RCMM-46
$31.15List $39.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeRound
GradeTP25
MaterialCarbide
CoatingTiCN
Description
The Seco 03279994 is a RCMM190600-46 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.
Specifications
Chip breaker46
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in3/8
Cutting edge styleHoned
Full radiusYes
Hole diameter0.3130
Included angle360degree
Industry standard numberRCMM64-46
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in3/4
Insert materialCarbide
Insert shapeRound
Insert size code64
Insert styleRCMM
Insert thickness0.2551
Iso codeRCMM190600-46
Lead angle360degree
Length range0.7000 - 10.0000
Manufacturers catalog number03279994
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.3750
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Rake angle14
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
