Seco

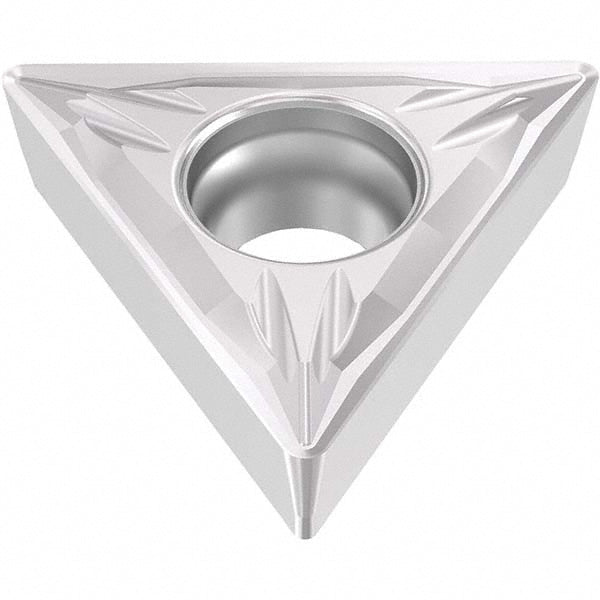

TCMT16T304-MF2 Carbide Insert, Grade TM3501, TiCN - Seco 03280021
MFR# 03280021ISO/ANSI# TCMT32.51-MF2Series TCMT-MF2
$18.60List $23.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTM3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03280021 is a TCMT16T304-MF2 carbide indexable insert, grade TM3501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF2
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle60degree
Industry standard numberTCMT32.51-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in39/64
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T304-MF2
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number03280021
Manufacturer gradeTM3501
Material gradeM30; M40
Maximum depth of cut0.6102
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
