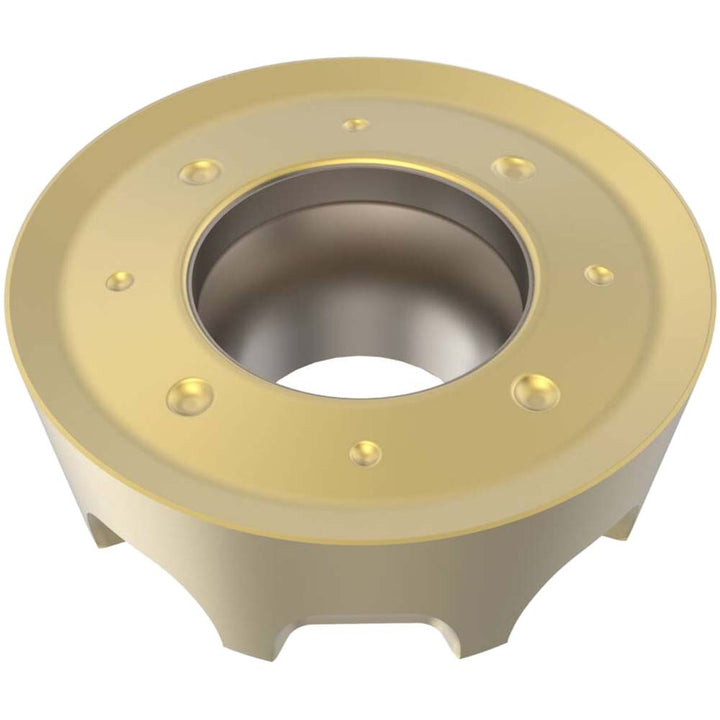

RPHT1605M0T-8-M12 Solid Carbide Insert, Grade F40M, TiAlN - Seco 03280046
MFR# 03280046ISO/ANSI# RPHT1605M0T-8-M12Cat# RPHT1605M0T-8-M12Series RPHT-16
$27.71List $35.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 03280046 is a RPHT1605M0T-8-M12 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeRPHT1605M0T-8-M12
Chip breakerM12
Coating finishTiAlN
Coating processPVD
Corner radius0.3150
Cutter series compatibilityR217.29-08; R220.29-08
Cutting edge effective length0.3150
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1605
Insert styleRPHT
Iso codeRPHT1605M0T-8-M12
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberRPHT1605M0T-8-M12
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle11.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeRound
Single or double sided insertSingle
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.6299
