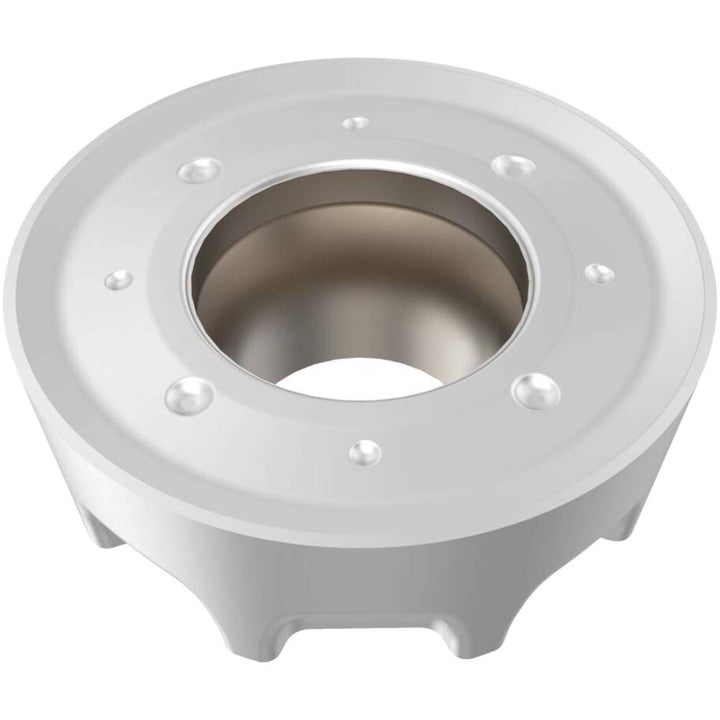

RPKT1605M0T-8-M18 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03280058
MFR# 03280058ISO/ANSI# RPKT1605M0T-8-M18Cat# RPKT1605M0T-8-M18Series RPKT-16
$27.62List $35.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03280058 is a RPKT1605M0T-8-M18 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeRPKT1605M0T-8-M18
Chip breakerM18
Coating finishTiCN
Coating processCVD
Corner radius0.3150
Cutter series compatibilityR217.29-08; R220.29-08
Cutting edge effective length0.3150
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1605
Insert styleRPKT
Iso codeRPKT1605M0T-8-M18
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberRPKT1605M0T-8-M18
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle11
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeRound
Single or double sided insertSingle
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.6299
