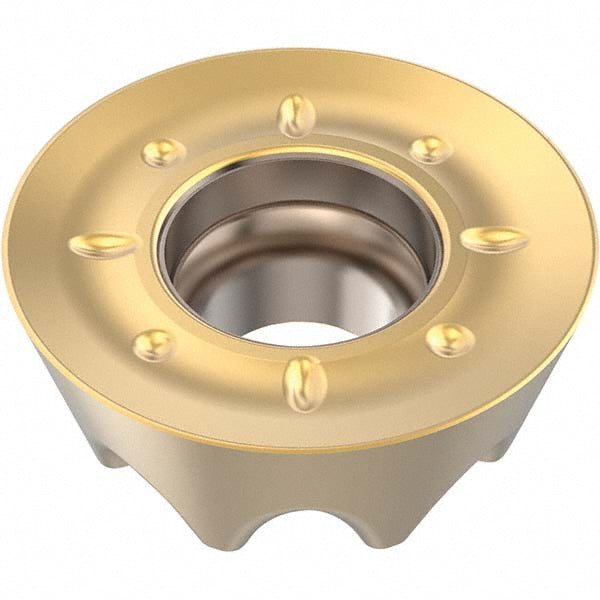

RDKT10T3M0T-8-M05 Solid Carbide Insert, Grade F40M, TiAlN - Seco 03280716
MFR# 03280716ISO/ANSI# RDKT10T3M0T-8-M05Cat# RDKT10T3M0T-8-M05Series RDKT-10
$12.63List $16.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 03280716 is a RDKT10T3M0T-8-M05 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeRDKT10T3M0T-8-M05
Chip breakerM05
Coating finishTiAlN
Coating processPVD
Corner radius0.1969
Cutter series compatibilityR217.29-05; R220.29-05
Cutting edge effective length0.1969
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree360
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size10
Insert size code10T3
Insert styleRDKT
Iso codeRDKT10T3M0T-8-M05
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberRDKT10T3M0T-8-M05
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.1969
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle16
Relief angle15
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeRound
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3937
