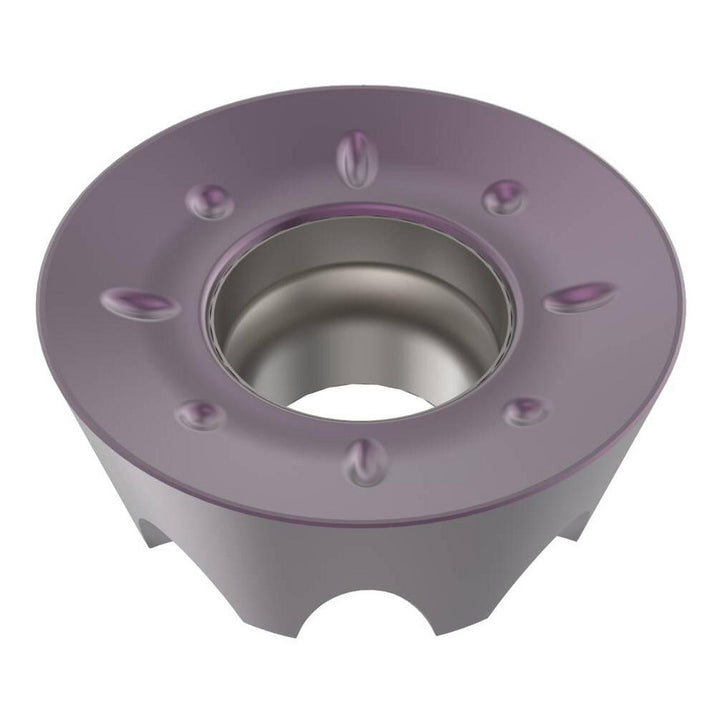

RDHT10T3M0T-8-M11 Solid Carbide Insert, Grade MP2050, TiSiN - Seco 03280726

Seco

RDHT10T3M0T-8-M11 Solid Carbide Insert, Grade MP2050, TiSiN - Seco 03280726

MFR# 03280726ISO/ANSI# RDHT10T3M0T-8-M11Cat# RDHT10T3M0T-8-M11Series RDHT-10

$18.18List $23.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeMP2050
MaterialSolid Carbide
CoatingTiSiN

Description

The Seco 03280726 is a RDHT10T3M0T-8-M11 solid carbide indexable insert, grade MP2050, TiSiN coated.

Specifications

Ansi codeRDHT10T3M0T-8-M11
Chip breakerM11
Coating finishTiSiN
Coating processPVD
Corner radius0.1969
Cutter series compatibilityR217.29-05; R220.29-05
Cutting edge effective length0.1969
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree360
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size10
Insert size code10T3
Insert styleRDHT
Iso codeRDHT10T3M0T-8-M11
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberRDHT10T3M0T-8-M11
Manufacturer gradeMP2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.1969
Multi use toolYes
Number of cutting edges8
RakePositive
Rake angle16
Relief angle15.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeRound
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3937
